Description

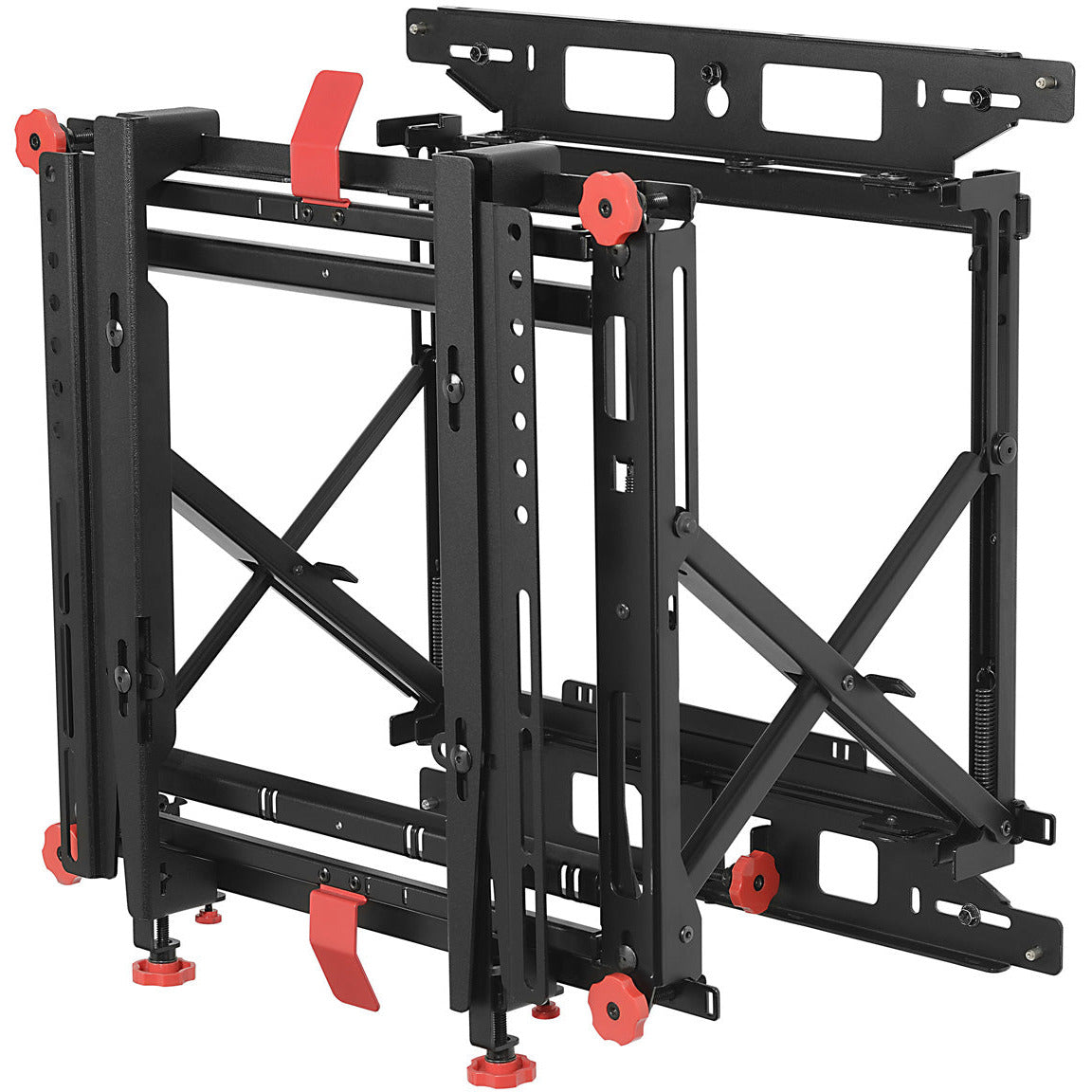

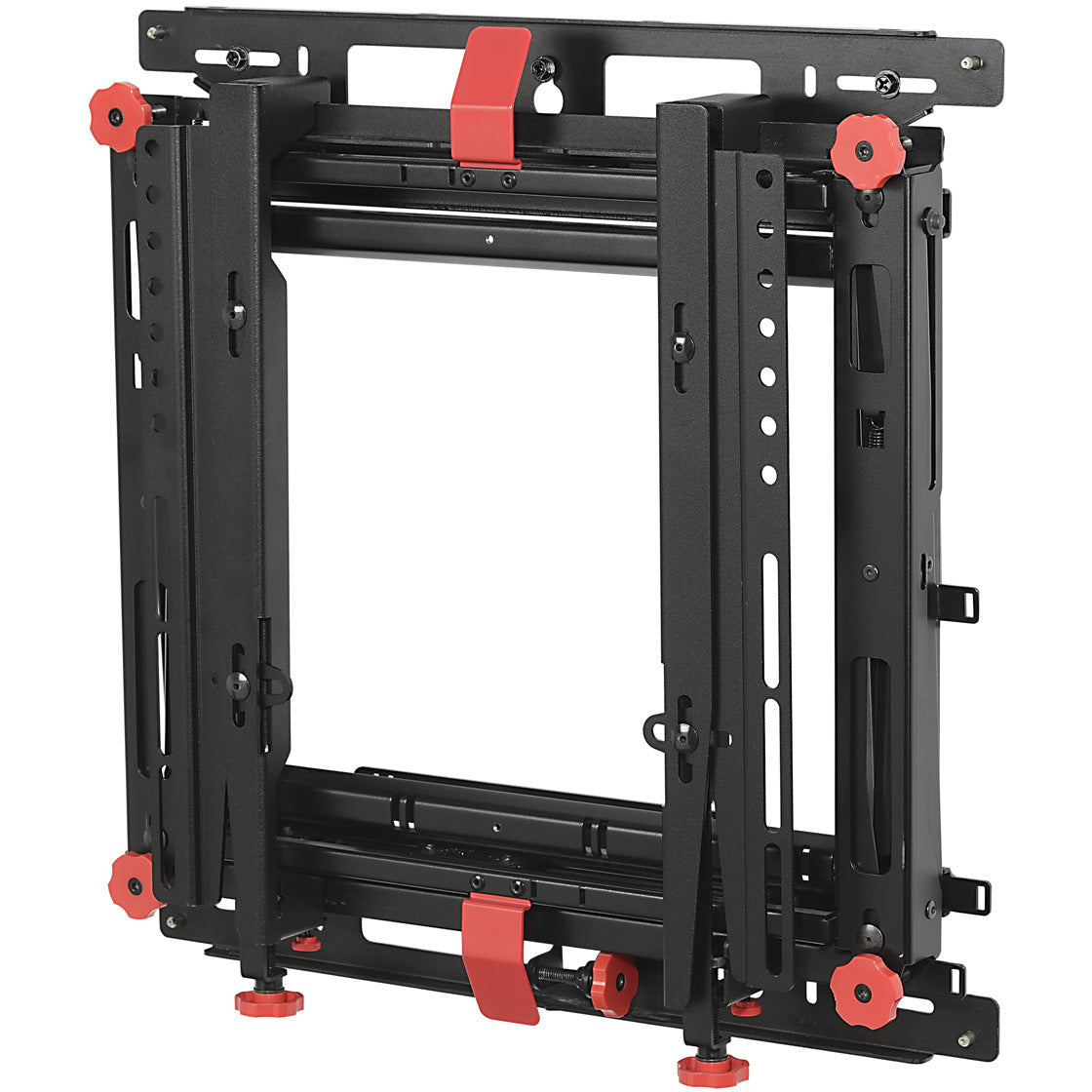

High-end universal video wall mount with quick release front service, for installation of NEC’s 45" to 55" video wall and single displays, in landscape or portrait orientation.
Delivering Genuine Benefits
- Serviceability so simple with a gentle press on the screen the quick release mechanism provides convenient access to any display in the video wall configuration.
- One size fits all to accommodate NEC displays from 46” to 55” in size, for landscape and portrait orientation
- Simplified installation with Easy Hang Wall Plate, compatible with the Peerless-AV video wall installation app
- Eliminate guesswork and on-site installation calculations with reusable custom wall spacer accessories, resulting in a faster install and lower cost
- Tool-less micro-adjustments of up to 1.5" of travel on each x, y and z axis
- Enhanced cable management allows cables to effortlessly travel in and out with the display
- Supports an unlimited number of displays without video wall configuration limitation
Technical Sepcifications
| Depth (min-max) | 80-118 mm |
| Max. Extension | 356 mm |
| Max. weight capacity | 56.8 kg |
| Adjustment (x,y,z-axis) | 38 mm |
| Order Codes | |
| Wall Mount PD04VW MFS 46 55 | 100015292 |
| Connector Kit CK04UN462A | 100015298 |
| Connector Kit CK04UN42S | 100015297 |
| Connector Kit CK04UN552A | 100015296 |
| Connecor Kit CK04UX552S |
100015293 |
