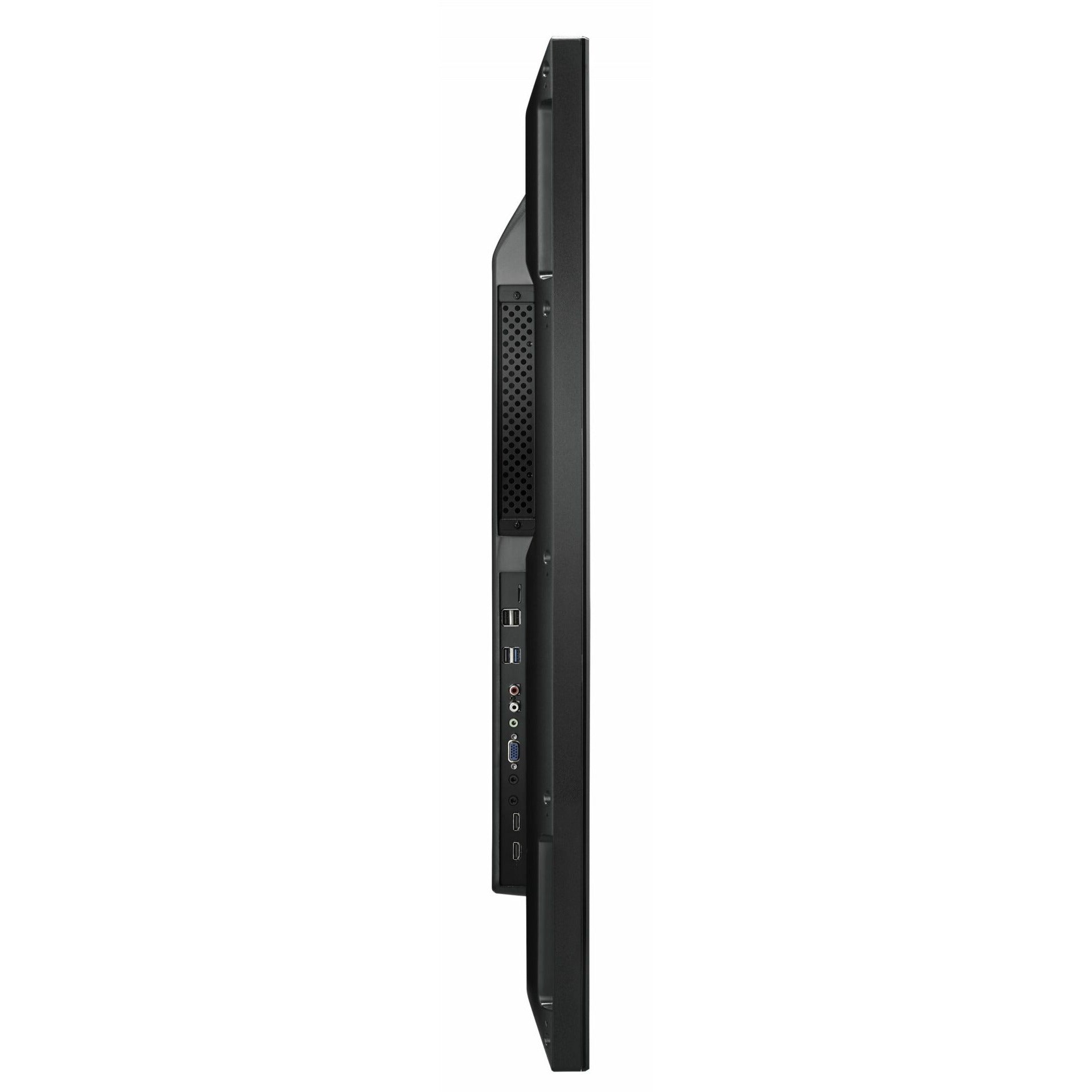

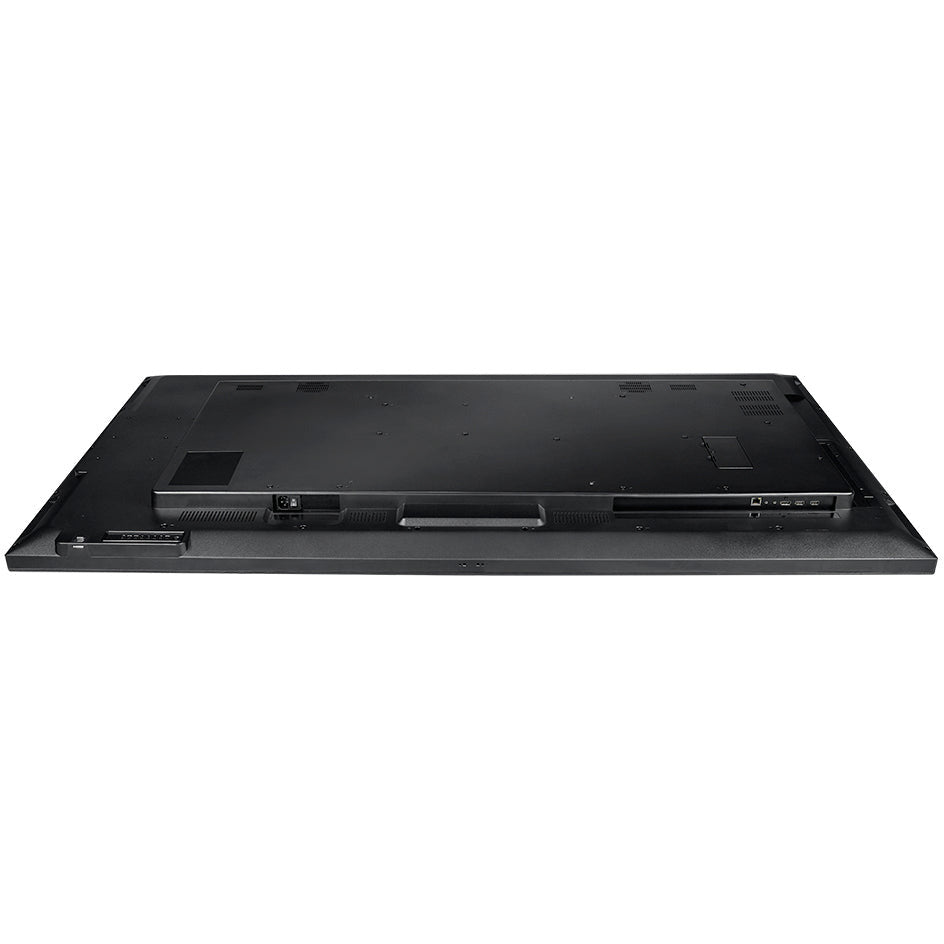

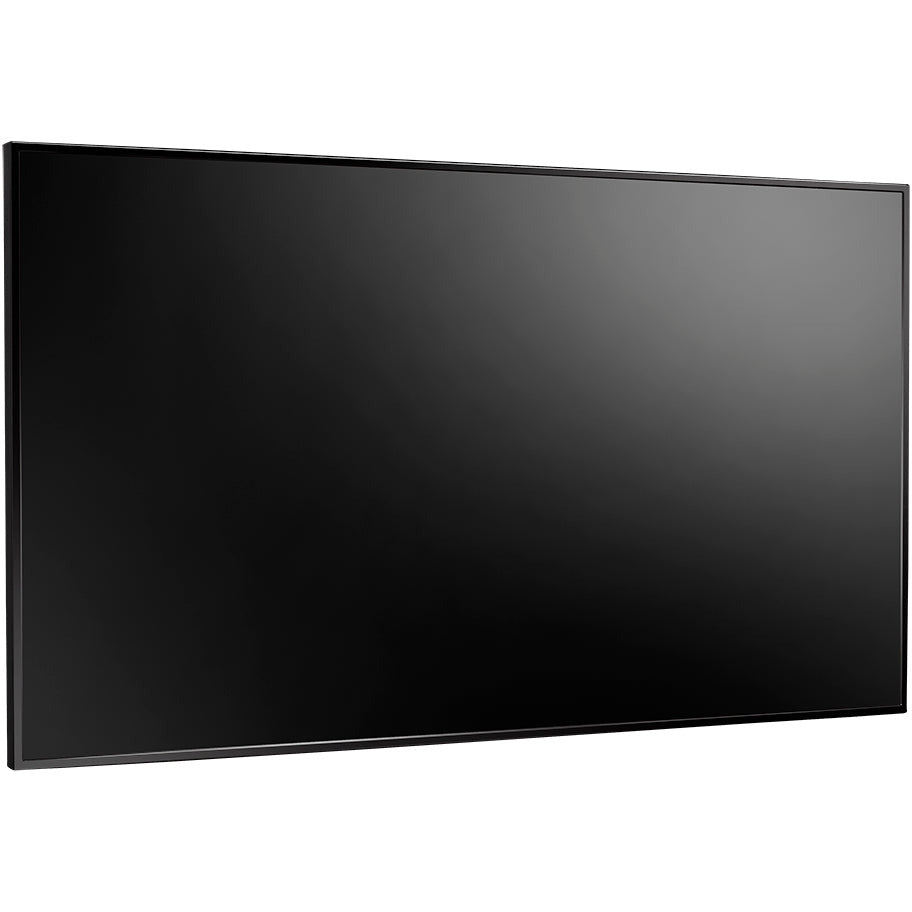

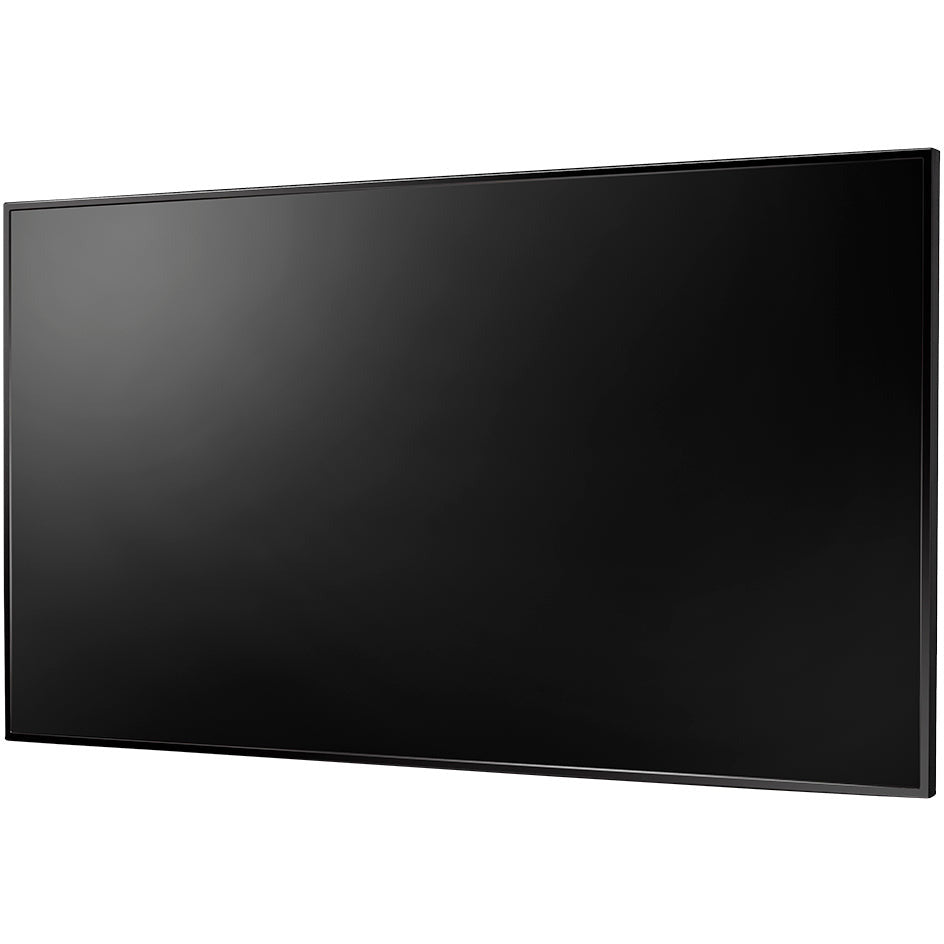

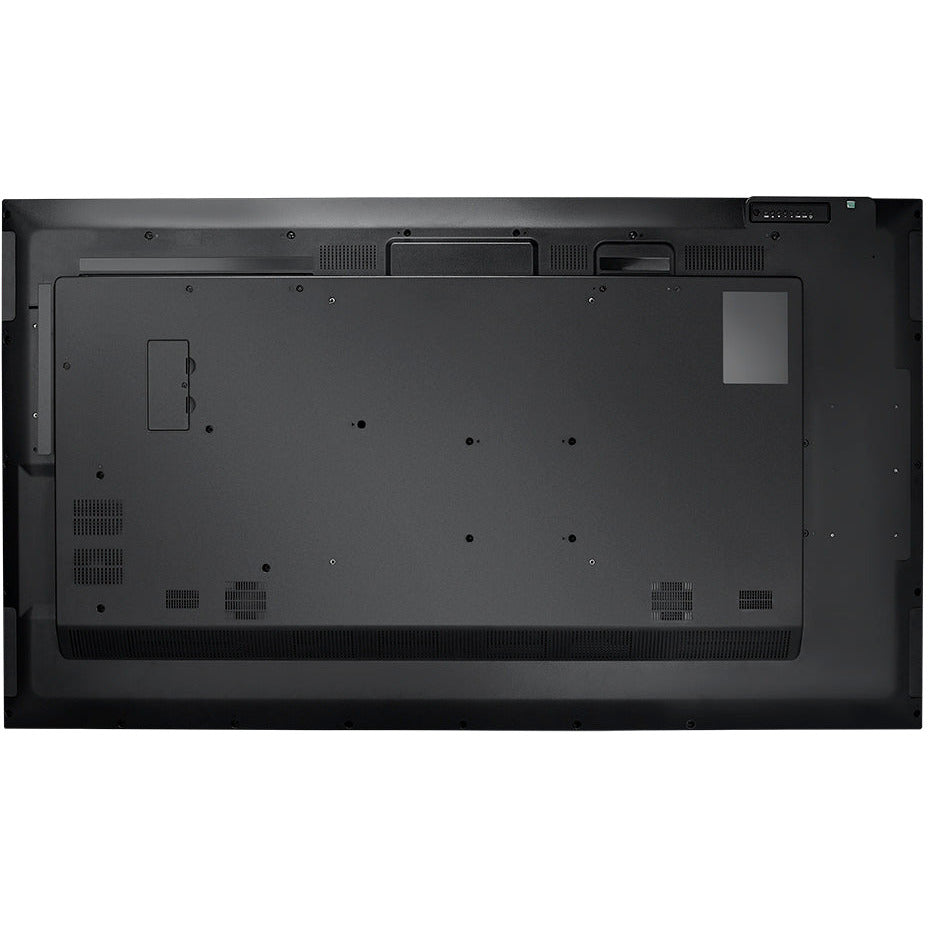

AG Neovo NSD-6501Q 65-Inch All-In-One 4K Digital Signage Display

AG NeovoSKU: NSD-6501Q

Price:
Sale price$2,609.01

Shipping calculated at checkout

Stock:
Sold out

Pickup currently unavailable at USA Warehouse

Description

Features

  • 4K UHD 3840 x 2160 resolution
  • Embedded cloud-based CMS for worldwide content and device management
  • Bundled LAN-based content management software
  • Support 4K multimedia playback via USB and Micro SD
  • IR/ RS232/ RJ45 connection for easy control and management

The NSD-6501Q 65-inch all-in-one digital signage display integrates the Android operating system, providing various ways to publish your digital signage content. You can broadcast content via Neovo Signage cloud solution, bundled LAN-based CMS, or from embedded USB media player to fulfil different signage needs without connecting to any external devices. From their razor-sharp 4K resolution, versatile connectivity, and IR/RS232 loop-through capability, the display is ready to meet a wide variety of business types.

EXPERIENCE THE 4K DIFFERENCE

Don’t miss a single detail with this powerful 4K display. View smooth 4K video and images with a new level of detail and clarity. Offering 8.3 million pixels, the NSD-6501Q provides the ultimate digital signage experience.

NEOVO SIGNAGE CLOUD-BASED DIGITAL SIGNAGE SOFTWARE

Working exclusively with NSD-6501Q, Neovo Signage cloud-based digital signage platform enables you to create and schedule signage campaigns, manage devices, and update content via a browser no matter where you are. You can add dynamic and interactive signage apps to your campaigns without any technical skills.

ENHANCED ANDROID-POWERED DIGITAL SIGNAGE PLATFORM

With embedded Android OS, you can integrate different Android-based apps or use the LAN-based CMS as a video source to create a dynamic digital signage experience for your viewers.

VERSATILE CONTENT PLAYBACK AND SCHEDULING

The embedded 4K media player allows you to conveniently play content from a USB drive, micro SD, or internal storage. Simply create scheduled playlists with the included remote control to display your personalised content.

EMBEDDED IMAGE ENHANCER

The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, Noise Reduction, and Freeze to solve image issues – offer crystal clarity to the most demanding environments.

GREATER VOLUMES OF SUPPORTED FORMATS

Display live content with a full-screen HTML5 browser, perfect for customisable content like websites, waiting lists, live polling, social media engagement, and dynamic weather information. The PDF player allows users to leverage existing presentations and comfortably control the length of time in which slides are displayed.

IR/RS232 DAISY CHAINING

With IR and RS232 loop-through capability, control signals can be directed to NSD-6501Q displays using a single PC connection or remote control. This helps to save a significant amount of time and provides a convenient single point of control for large multi-display installation.

PATENTED ANTI-BURN-IN™ TECHNOLOGY

To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in™ Technology to prevent image burn-in and assure the extended life span for displays.

PID COMMAND & CTRL SOFTWARE

PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple color calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.

Specification

Panel
  • Panel Type
  • VA
  • Panel Size
  • 64.5"
  • Max. Resolution
  • UHD 3840 x 2160
  • Pixel Pitch
  • 0.372mm
  • Brightness
  • 350 cd/m²
  • Contrast Ratio
  • 5000:1
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 1.07B
  • Response Time
  • 5 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze 2%),3H Hard Coating
Frequency
  • Frequency (H)
  • 31 kHz-92 kHz
  • Frequency (V)
  • 48 Hz-85 Hz
Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 2.0 x 4
  • VGA
  • 15-Pin D-Sub x 1
External Control
  • IR In
  • 3.5 mm Phone Jack
  • IR Out
  • 3.5 mm Phone Jack
  • RS232 In
  • 2.5 mm Phone Jack
  • RS232 Out
  • 2.5 mm Phone Jack
  • LAN
  • RJ45 x 1
Embedded Player
  • OS
  • Android 5.0.1
  • CPU
  • 1 Ghz Quad Core Full HD
  • Memory
  • 2 GB DDR3
  • Storage
  • 8 GB eMMC
Other Connectivity
  • USB
  • 2.0 x 1 (Service Port / Media Playback) / 2.0 x 1 (Media Playback) / 3.0 x 1 (Media Playback) / USB Power Outlet x 1 (5V2A)
  • OPS Slot
  • Yes
  • Micro SD Card Slot
  • Yes
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Audio Out
  • Stereo Audio Jack (RCA)
  • Internal Speakers
  • 10W x 2
Power
  • Power Supply
  • Internal
  • Power Requirements
  • AC 100-240V
  • 50/60 Hz
  • On Mode
  • 185W (On)
  • Standby Mode
  • < 0.3W
  • Off Mode
  • 0W
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 20%-80% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 10%-90% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (400 x 400 mm)
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product w/o Base (W x H x D)
  • 1458.7 x 834.7 x 81.6 mm (54.7" x 32.9" x 3.2")
  • Packaging (W x H x D)
  • 1655.0 x 1078.0 x 280.0 mm (65.2" x 42.4" x 11.0")
Weight
  • Product w/o Base
  • 24.8 kg (54.7 lb)
  • Packaging
  • 35.2 kg (77.6 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • WEEE
  • RoHS
  • REACH
  • EAC
  • FCC
Accessories
  • Supplied
  • Batteries
  • HDMI Cable
  • Power Cord
  • Quick Start Guide
  • Remote Control
  • RS232 Cable
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + LMK-01
  • Wall Mount (Landscape only)
  • LMA-01
  • LMA-02
  • LMK-01
  • LMK-03
  • Floor Mount (Landscape only)
  • FMC-02
  • FMC-03 + LMK-04
  • FMC-04 + LMK-04
  • FMC-06
  • FMS-01
  • FMS-02
  • Desk mount (Landscape only)
  • DTS-01
  • Video Wall Mount (Landscape only)
  • VWM-01
  • VWM-02



Display Specifications

Panel Size: 65"

Panel Type : VA

Response Time: 5ms

Horizontal Sync :

Native Resolution : 3840 x 2160

Aspect Ratio :

Panel Brightness :

Static Contrast :
