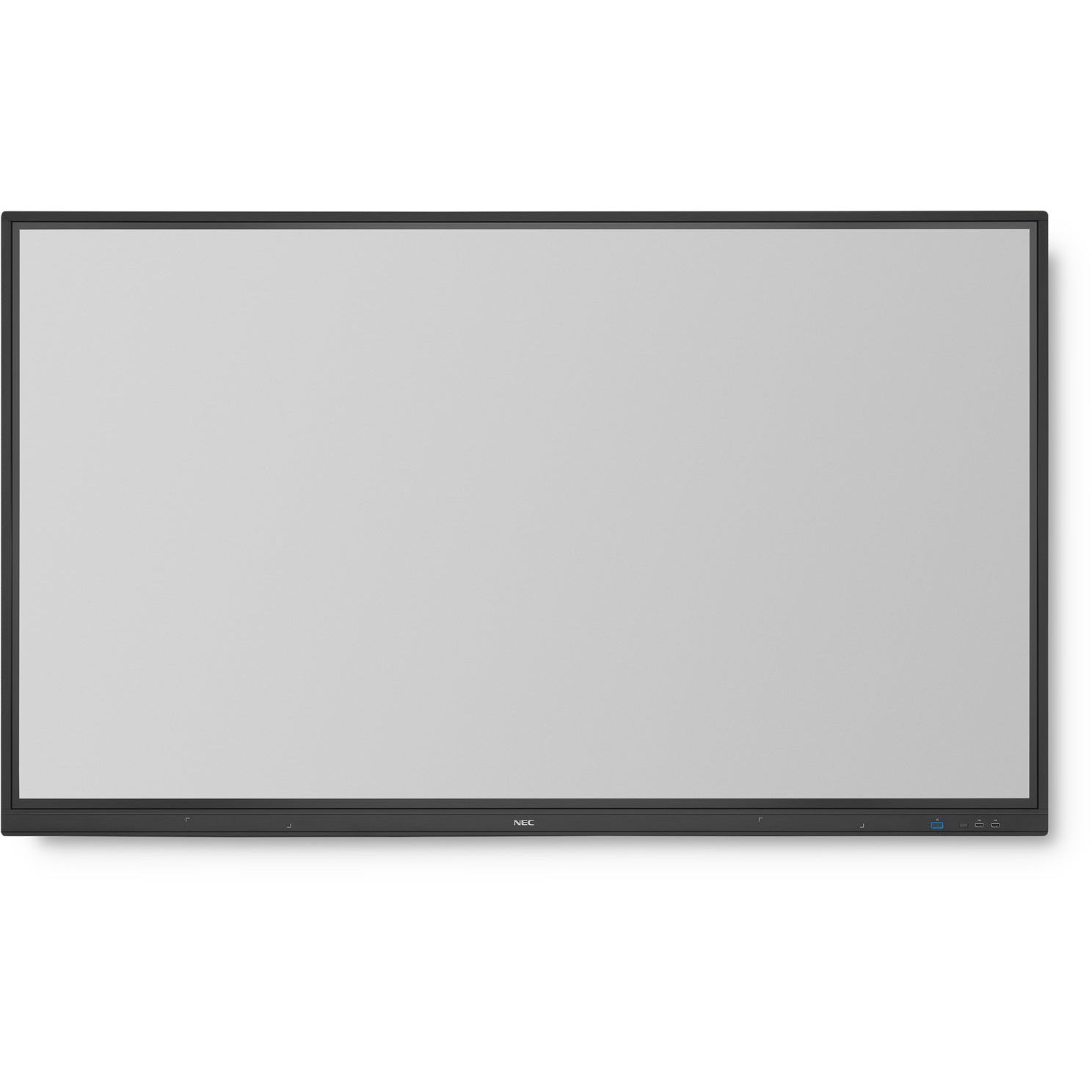

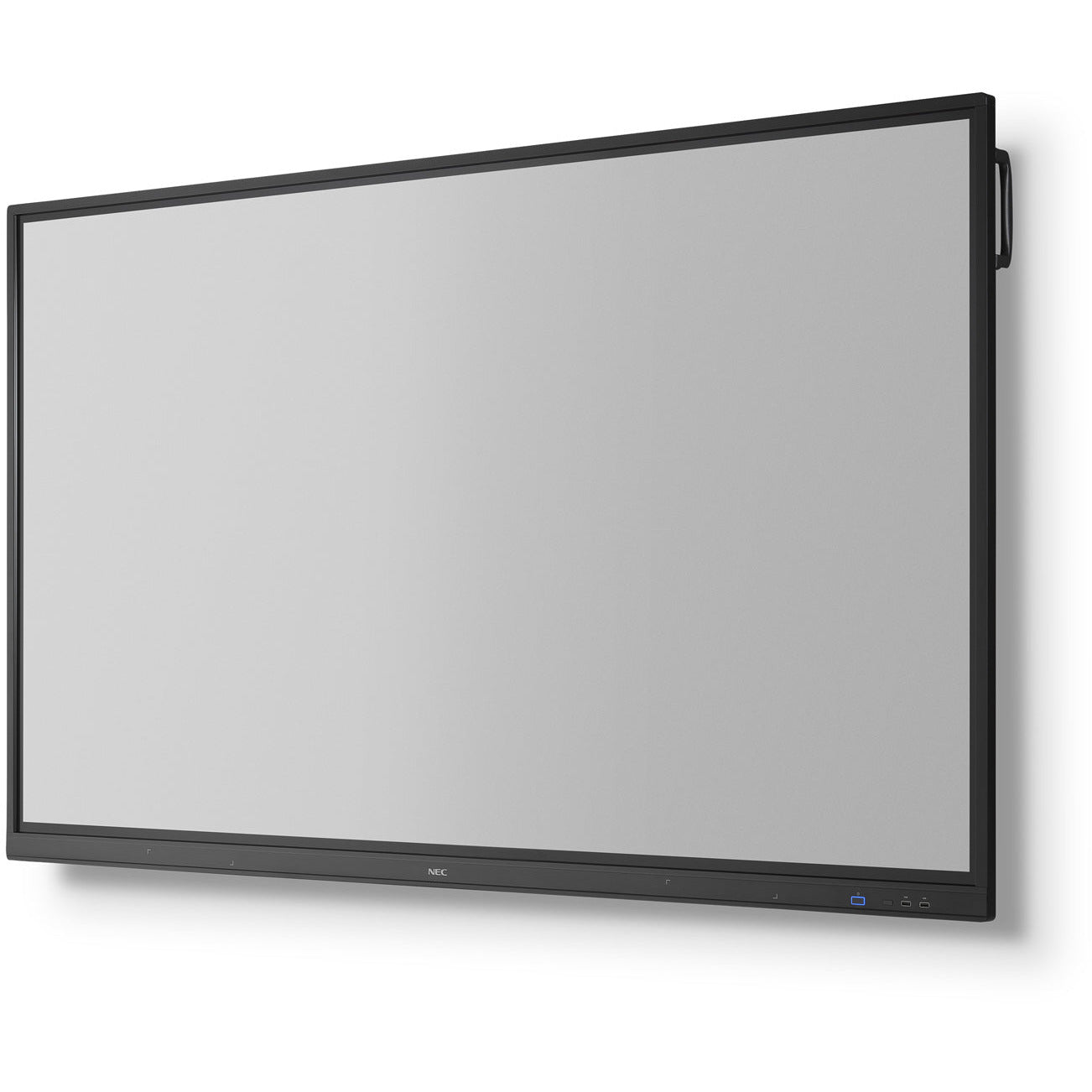

NEC MultiSync® CB751Q LCD 75" Infrared Touch Collaboration Display

NECSKU: 60004824

Price:
Sale price$3,910.00

Shipping calculated at checkout

Stock:
Sold out

Pickup currently unavailable at USA Warehouse

Description

Enter a world of interactive white-boarding

Upgrade your lectures and meetings with NEC’s all-in-one collaboration boards, in three different sizes, featuring UHD resolution and up to 20 touch points. Based on infrared touch technology the user experiences perfect usability with a rapid touch response. Business and educational sessions start-up instantly with built-in whiteboard and wireless screen sharing functionalities without any hidden costs. The embedded annotation tool lets you annotate over any content shown on the screen.

For more demanding applications, the OPS slot provides the opportunity to enhance the computing power. With sizes including 65’’, 75’’ and 86’’, the NEC CB Series offers the ideal solution for your meeting and class rooms.

All NEC CB Series displays come with three magnetic pens and a wall-mount fitting for easy installation.

Benefits

  • Out-of-the-box collaboration – thanks to embedded computing with built-in annotation tools and wireless presentation capabilities.
  • Multi-Touch – true multi-touch support with up to 20 simultaneous touch points.
  • Protective Glass – premium toughened glass protects the security of the panel yet delivers a perfect touch experience with anti-glare coating to minimise reflections and fingerprints.
  • Simple operation – with easy front access to USB ports and controls for major functionalities
  • Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

DISPLAY

Panel Technology IPS with Direct LED backlights
Active Screen Area (W x H) [mm] 1,649.7 x 927.9
Screen Size [inch/cm] 75 / 189.3
Aspect Ratio 16:9
Pixel Pitch [mm] 0.4296
Brightness [cd/m²] 350, 300 (shipment setting)
Contrast Ratio (typ.) 1100:1
Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn] 1,073 (10bit)
Response Time (typ.) [ms] 8 (grey-to-grey)
Haze Level [%] 3
Supported Orientation Landscape
TOUCH
Touch Technology Infrared
Number of Touches Real multi-touch up to 20 touches
Touch Method Finger; Gloves; Stylus (≥ 8 mm)
Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
Data Interface USB-HID
Accuracy [mm] < 2
Palm Rejection no
Windows Ink no
GLASS
Type Thermal-tempered, anti-glare coating
Thickness [mm] 4
Light Transmission [%] 88 (+/- 1 %)
Reflection Rate [%] 4
Hardness [H] 7
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1920 x 1080;3840 x 2160;4096 x 2016
Supported on HDMI only
3840 x 2160 (60 Hz);4096 x 2016 (24 Hz)
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 26 - 135
Vertical Frequency [Hz] 23 - 86
CONNECTIVITY
Input Video Analogue 1 x VGA
Input Video Digital 3 x HDMI
Input Audio Analogue 1 x 3,5 mm jack
Input Audio Digital 3 x HDMI
Input Control LAN 100Mbit; RS232
Input Data 2 x USB Type-B (Upstream); 6 x USB 2.0 (Downstream)
Output Audio Analogue 1 x 3,5 mm jack
Output Audio Digital 1 x SPDIF
Output Control LAN 100Mbit
OPEN MODULAR INTELLIGENCE
OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W] 3.5 / 63
ELECTRICAL
Power Consumption Eco/max. [W] 205 Eco (shipment setting), 430
Power Savings Mode [W] < 0.5 (ECO Standby); < 2 (Networked Standby)
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 10 to 90
MECHANICAL
Dimensions (W x H x D) [mm] Without stand: 1,709.4 x 1,020 x 86.8
Weight [kg] Without stand: 52.6
Bezel Width [mm] 17.7 (left, right and top); 45.7 (bottom)

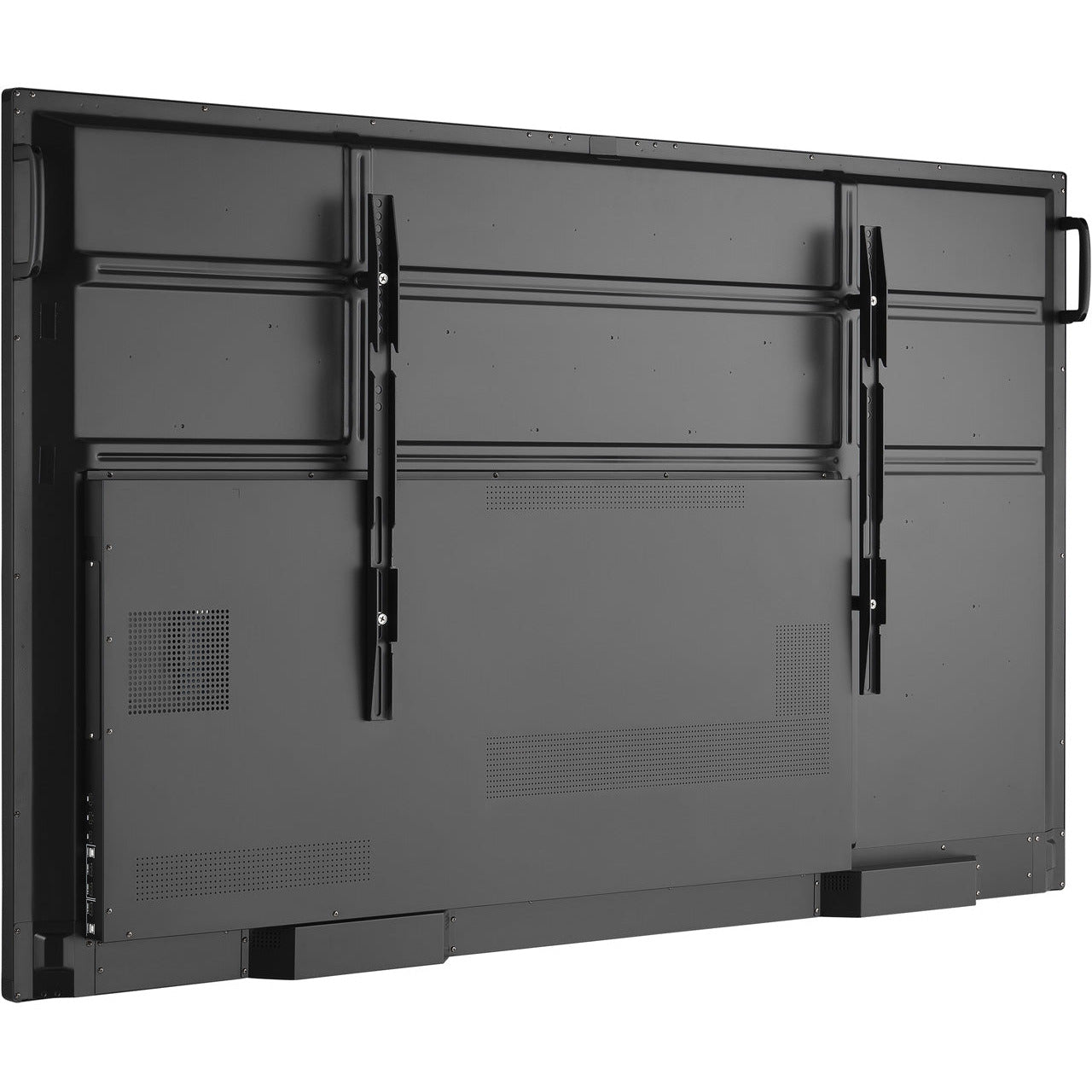

VESA Mounting [mm] 4 holes; 800 x 400 (FDMI); M8
EMBEDDED COMPUTING

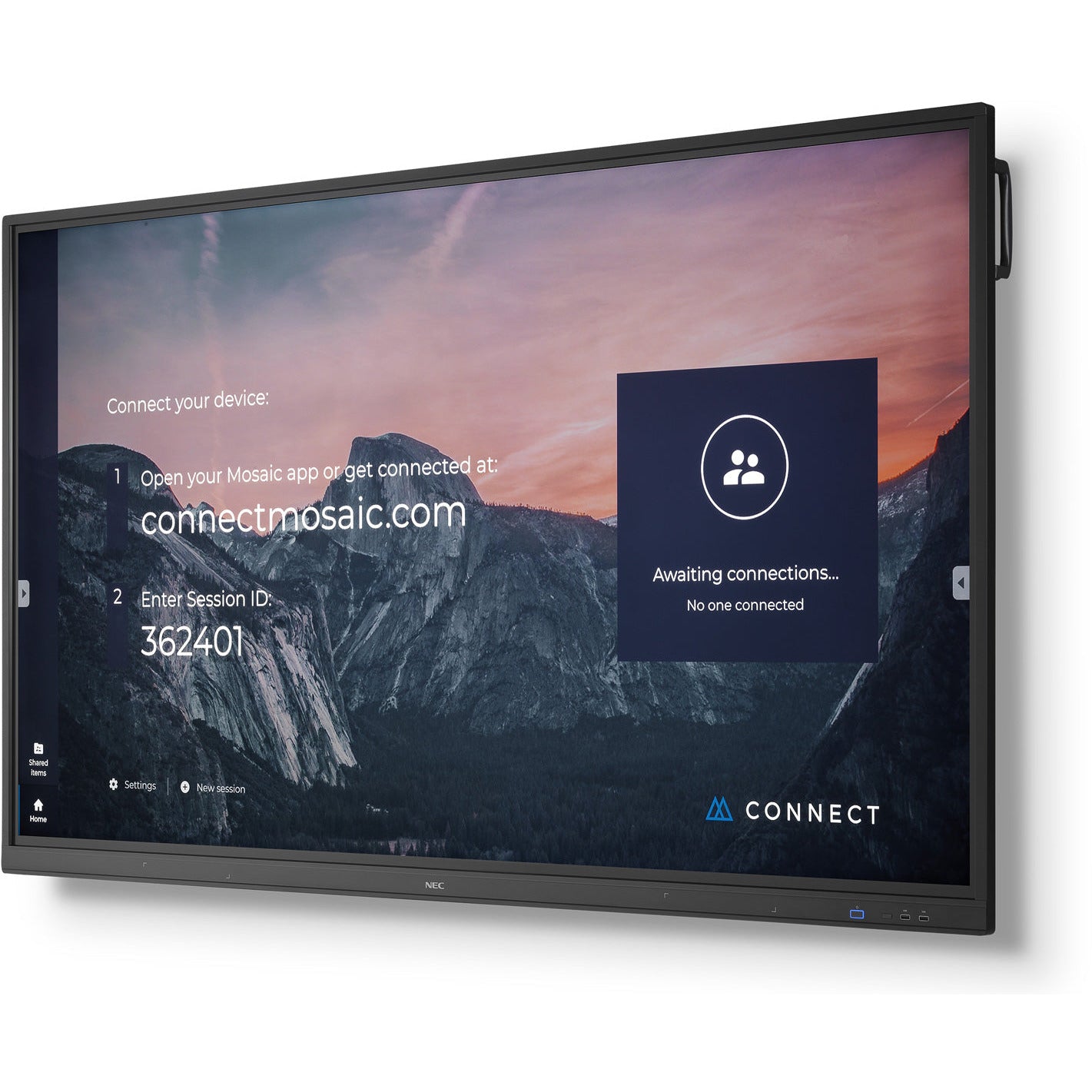

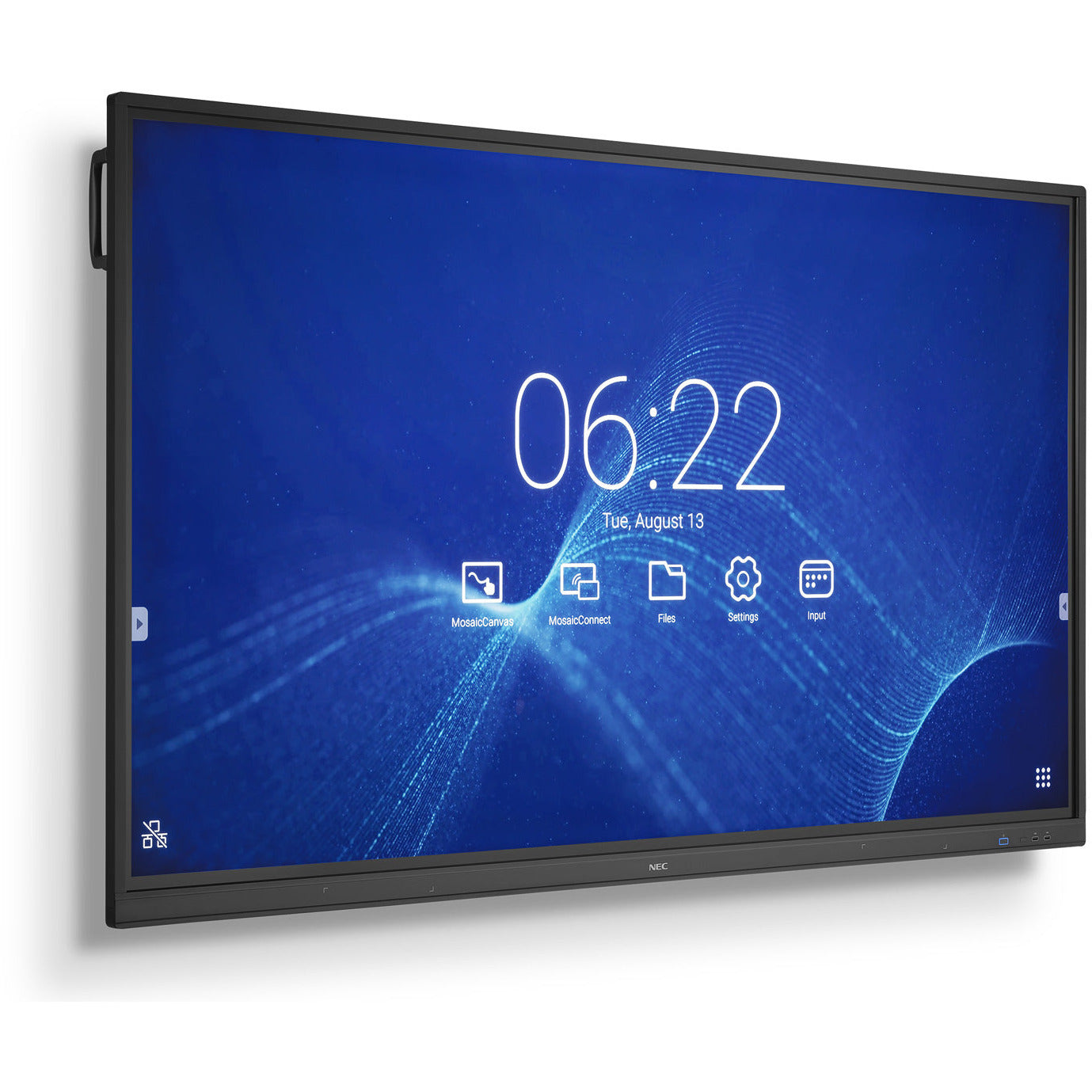

Built-in Applications File Manager; Input Select; Setting; Web Browser; Whiteboard - Mosaic Canvas; Wireless Presentatiom - Mosaic Connect
System Memory 2G RAM
Internal Storage 16GB ROM
AVAILABLE OPTIONS
Accessories Soundbar (Active Collaboration Soundbar SP-ASCM - not supported by embedded compute); Trolley (PD02MHM, PD02MHA, PD03MHA); Wall mount (BalanceBox 400 MEDIUM; 1x standard wall mount included); Wireless LAN module NP05LM2 (Europe); Wireless LAN Module NP05LM4 (Russia)
OPS Slot HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI
ADDITIONAL FEATURES
Special Characteristics AMX NetLinx Support; HDMI with UHD at 60 Hz; NaViSet Administrator 2; Scheduler
Colour Versions Black Front Bezel, Black Back Cabinet
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; UL/C-UL
Audio Integrated Speakers (2 x 12 W)
Shipping Content 3 x Stylus; HDMI Cable; Power Cable; Remote Control; USB cable; User Manual; VGA cable; Wall Mount
Warranty 3 years warranty incl. backlight
Operating Hours 12/7



Display Specifications

Panel Size: 75"

Panel Type : IPS

Response Time: 8ms

Horizontal Sync :

Native Resolution : 3840 x 2160

Aspect Ratio :

Panel Brightness :

Static Contrast :
