Descripción

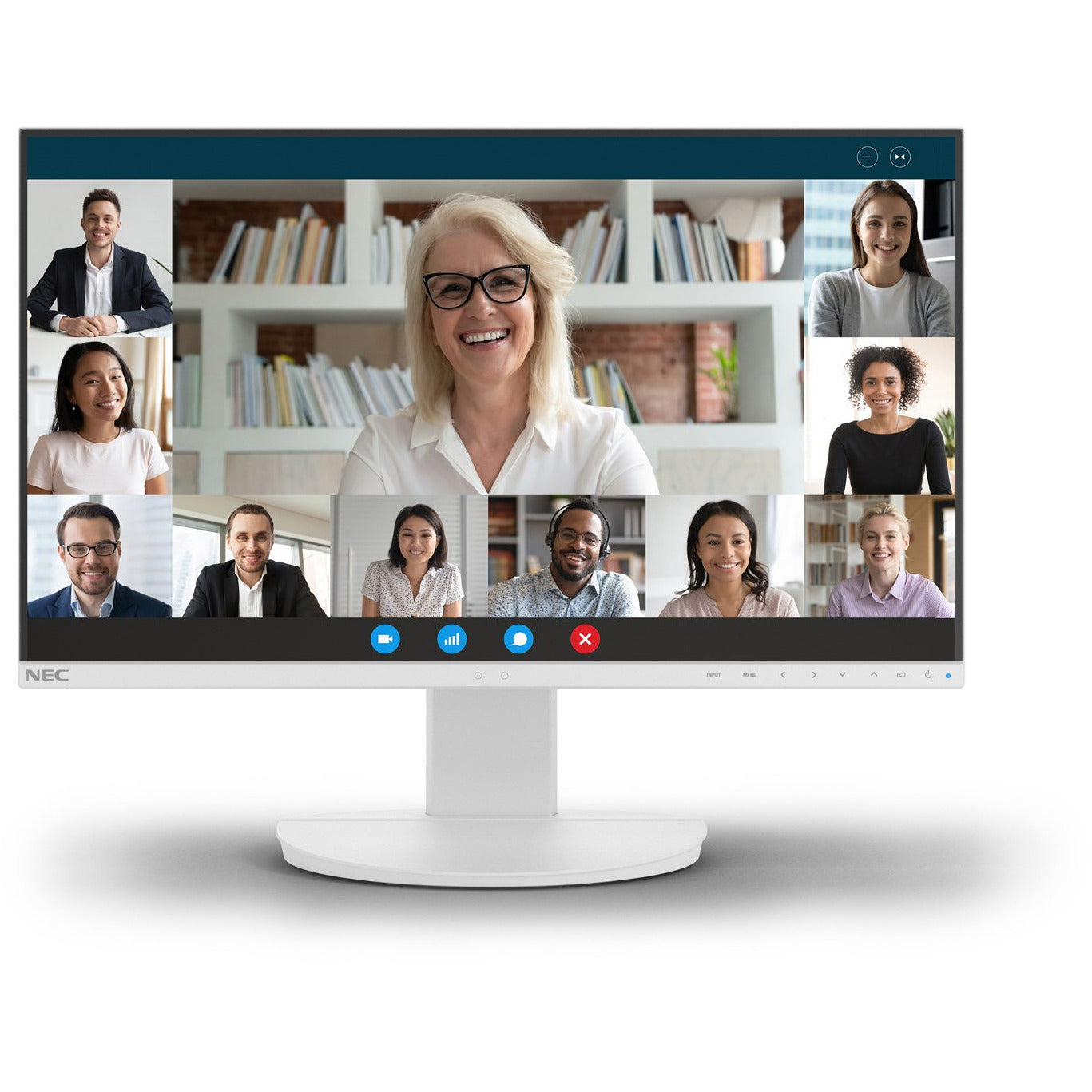

Powering workspace communications

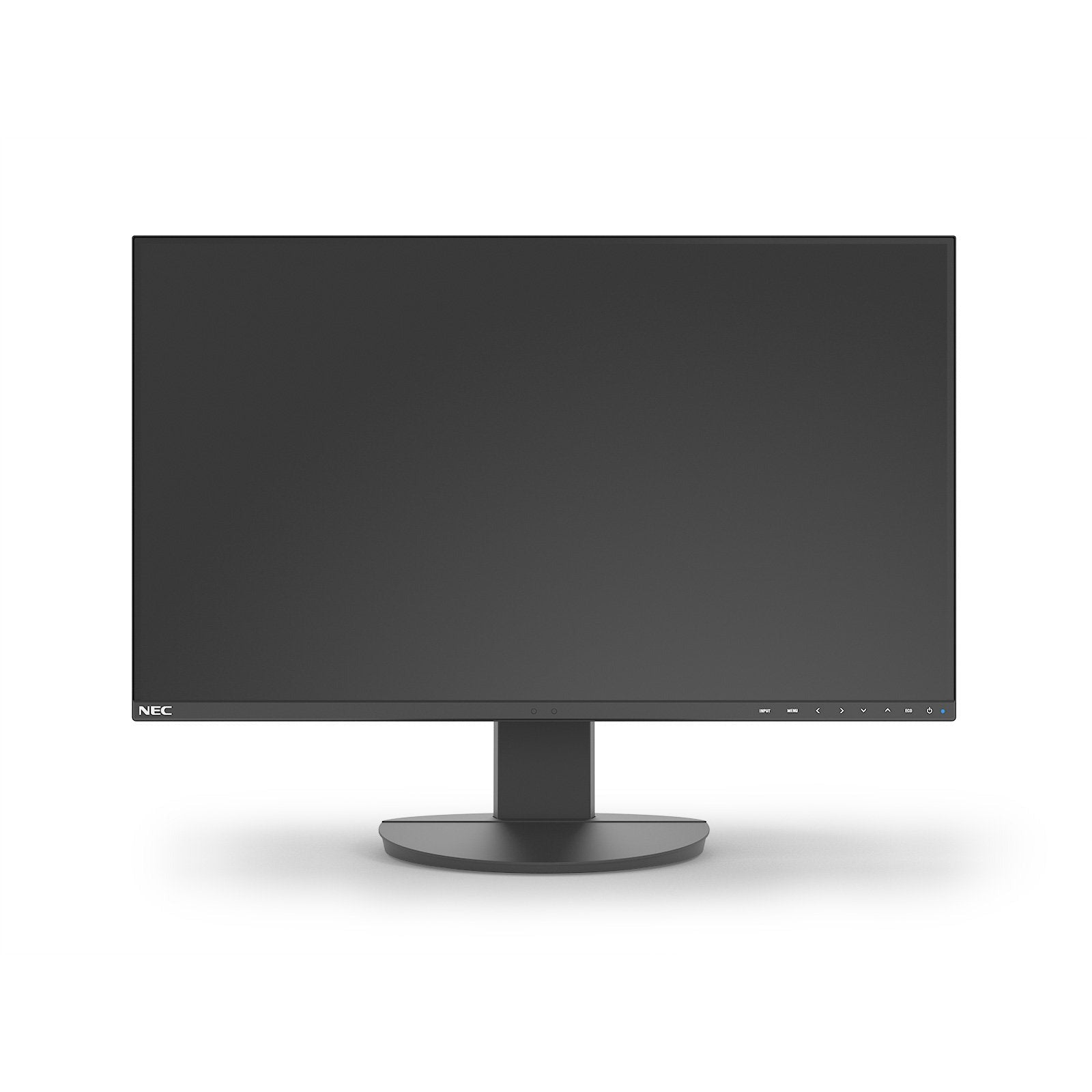

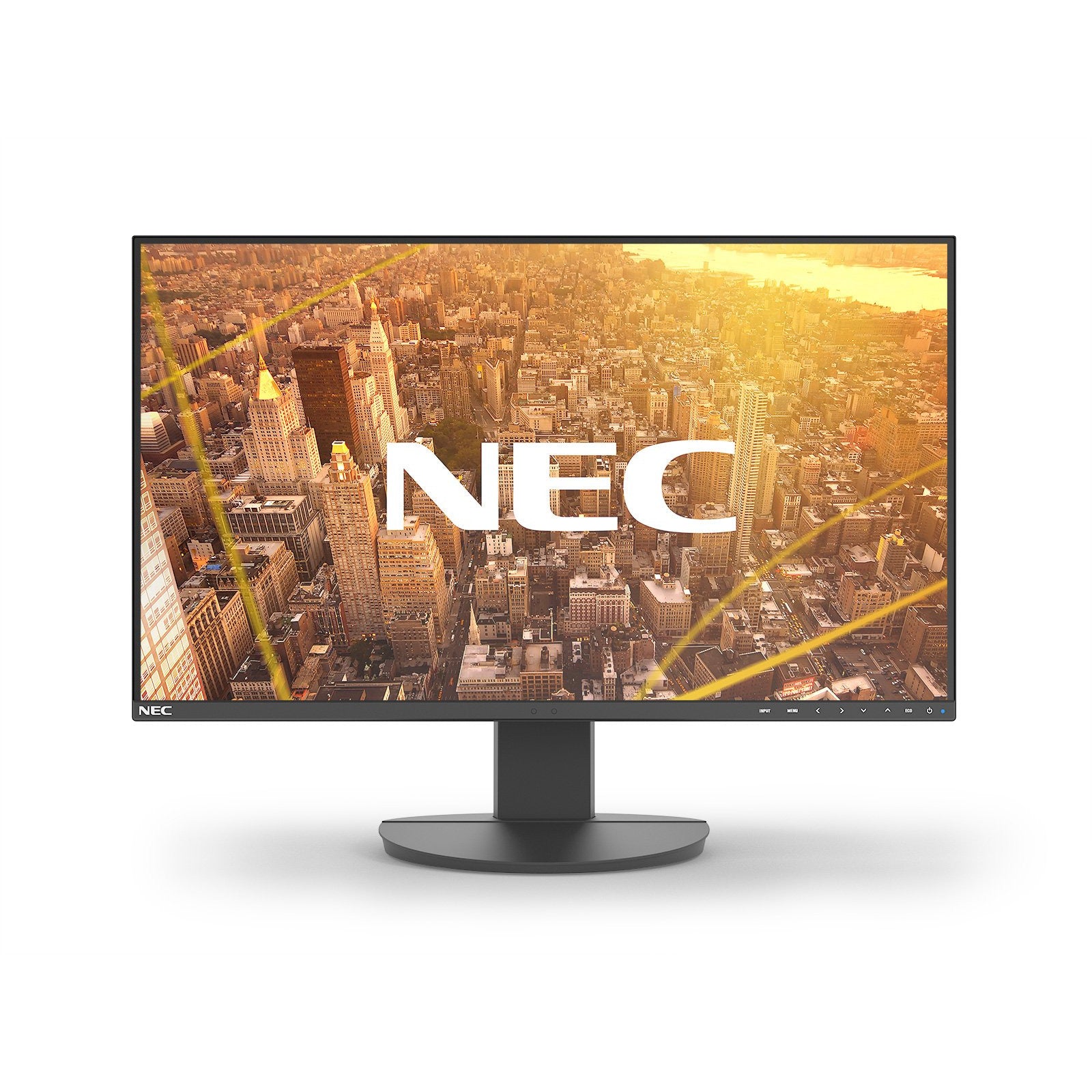

Powering your PC/notebook and all your devices through a single cable, the MultiSync® EA242F is your workspace hub; no docking station required, the 65W USB-C connection means an efficient, clutter-free workstation from which to manage your communications. Easily increase your display area using DisplayPort-out to daisy-chain multiple displays, no additional cabling required.
User comfort is fundamental with full height adjustment, tilt, pivot and swivel supporting customised personal setup, whilst built-in low blue light technologies guard against eye fatigue without compromising true-to-life colour performance. Available in black or white, the 24” EA242F complements office interior design and ergonomics.
The connectivity advantage continues beyond USB Type-C with DisplayPort, HDMI, VGA and USB A for fully future-proof flexibility supporting new open office standards in hot desking and ‘bring your own device.’
Benefits
- In-demand display size – the popular 23.8” display with Full HD resolution is the perfect size for busy office workspaces.
- Future-proof flexibility – wide connectivity provides high-level flexibility with DP, HDMI, USB Type C, USB A and audio output.
- Clutter-free workspace – Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable
- Easy multi-screen set-up – Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed
- Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.
DISPLAY
| Panel Technology | IPS TFT with W-LED backlight |
| Screen Size [inch/cm] | 24 / 60.47 |
| Screen Aspect Ratio | 16:9 |
| Colour Gamuts | 101.6 % sRGB; 75.3% AdobeRGB, 72% NTSC |
| Pixel Pitch [mm] | 0.275 |
| Brightness (typ.) [cd/m²] | 250 |
| Contrast Ratio (typ.) | 1000:1 (5000:1 dynamic contrast ratio) |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Response Time (typ.) [ms] | 5 (grey-to-grey) |
| Colours [Mio.] | 16.78 (6-bit per colour) |
SYNCHRONISATION RATE
| Horizontal Frequency [kHz] | 31.5 - 83 |
| Vertical Frequency [Hz] | 50 - 75 |
RESOLUTION
| Optimum Resolution |
1920 x 1080 at 60 Hz
|
| Supported |
1024 x 768;1280 x 1024;1280 x 720;1280 x 960;1440 x 900;1680 x 1050;1920 x 1080;640 x 480;720 x 400;720 x 480;720 x 576;800 x 600
|

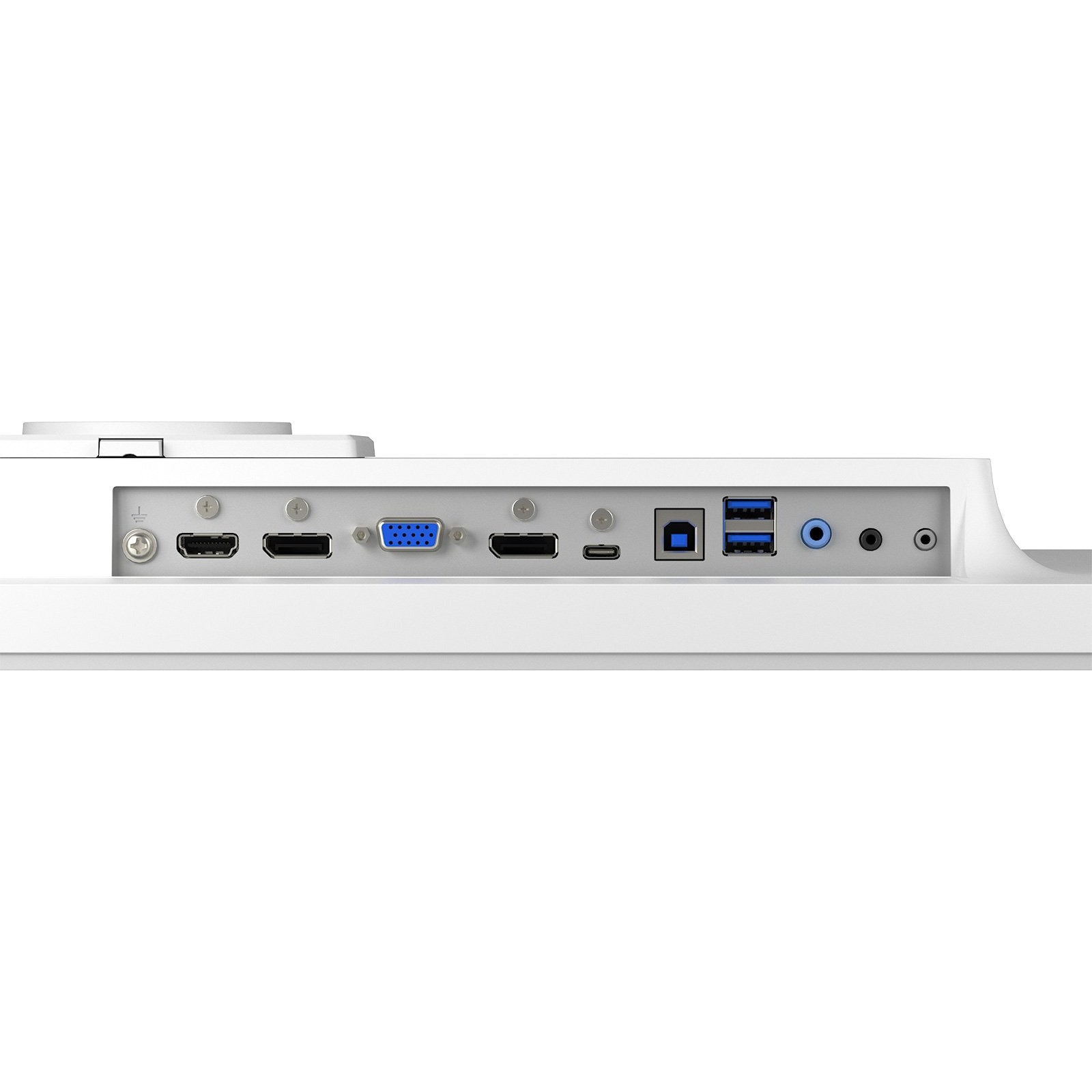

CONNECTIVITY
| Digital | 1 x DisplayPort; 1 x DisplayPort out; 1 x HDMI; 1 x USB Type C; USB ver. 3.1 (3 down / 1 up) |
| Analog | 1 x D-sub 15 pin |
ELECTRICAL
| Power Consumption on Mode [W] | 15 (Eco Mode 2); 21 (typ.) |
| Power Savings Mode [W] | 0.3 |
| Power Supply | 0.9 A/0.5 A; 100-240 V; internal power supply |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | +5 to +35 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 85 |
| Storage Temperature [°C] | -10 to 60 |
ERGONOMICS
| Height adjustable stand [mm] | 150 (Landscape mode) |
| Screen Tilt [°] | -5 to 35 |
| Screen Swivel [°] | -170 to 170 |
| Screen Rotate [°] | 0 to 90 (landscape to portrait mode) |
MECHANICAL
| Bezel Width [mm] | 0.8 (left/right/top); 15.8 (bottom) |
| Dimensions (W x H x D) [mm] | 319.1 x 555.6 - 615.4 x 250 (Portrait mode); 537.7 x 336.6 - 486.6 x 250 (Landscape mode) |
| Weight [kg] | With stand: 7 |
| VESA Mounting [mm] | 100 x 100 (4 points) |
ADDITIONAL FEATURES
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Cable Management | yes |
| Kensington security slot | yes |
| Plug and Play | DDC2B/2Bi; VESA DDC/CI; VESA DDC2Bi |
| Audio | Integrated Speakers (1 W + 1 W) |
| Adjust Functions | Advanced NTAA (Advanced Non-Touch-Auto-Adjustment) |
| Shipping Content | Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; USB Cable; USB-C Cable |
| Safety and Ergonomics | CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE |
| Warranty | 3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension |
GREEN FEATURES
| Energy Efficiency | Ambient light sensor; Energy consumption: 13 kWh/1000 h; Energy efficiency class: D; Human sensor |
| Ecological Standards | ErP compliant; RoHS compliant; WEEE |
Display Specifications
Panel Size: 24"
Panel Type : IPS TFT
Response Time: 5ms
Horizontal Sync :
Native Resolution : 1920 x 1080
Aspect Ratio :
Panel Brightness :
Static Contrast :
